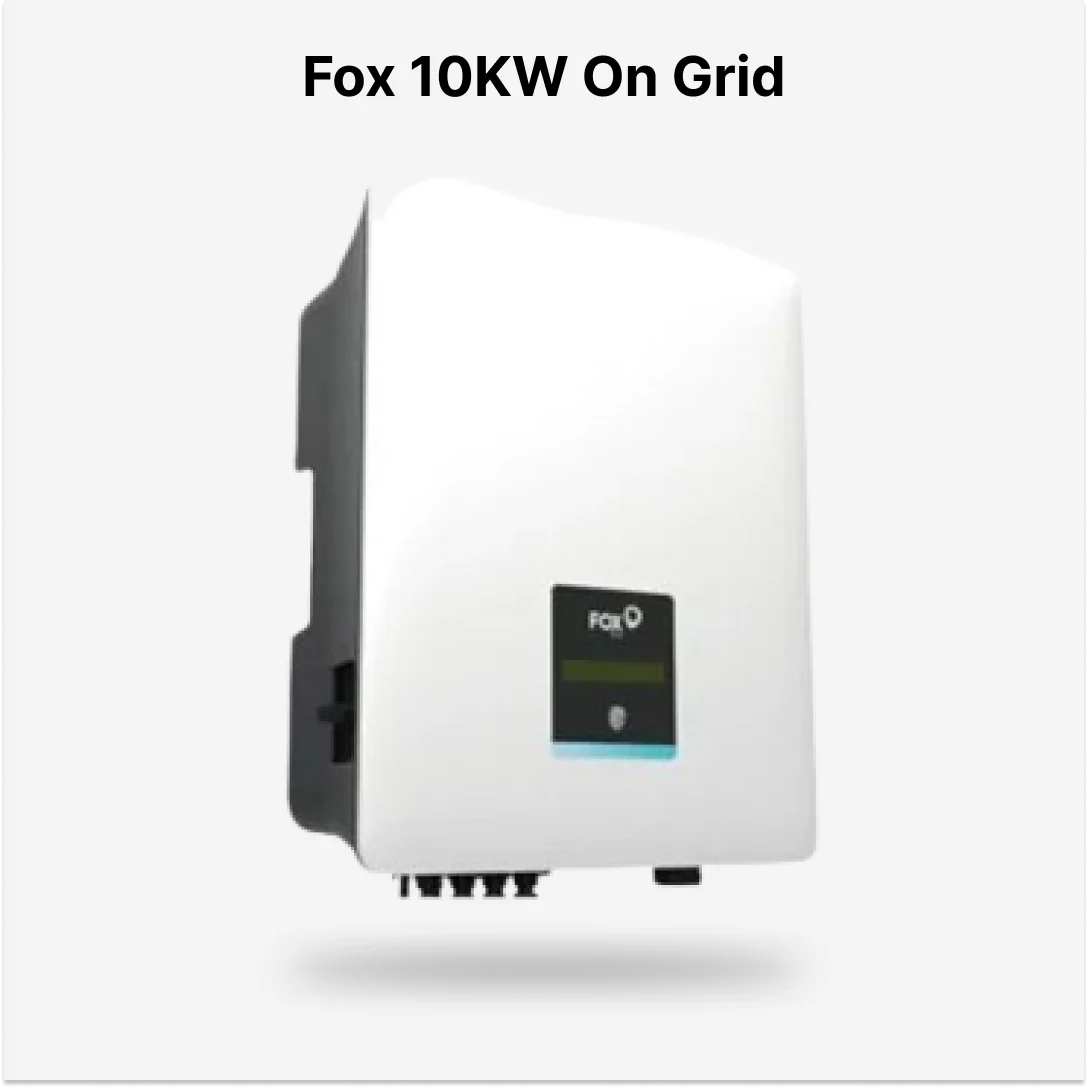

Fox 10KW On Grid Solar Inverter
Fox 10kW On-Grid Solar Inverter – T Series | 3-Phase High-Efficiency System
Smart. Stable. Scalable.
The Fox 10kW On-Grid Solar Inverter is a cutting-edge solution designed specifically for residential and small-scale commercial 3-phase installations. As part of the T Series, this inverter is renowned for its transformerless design, smart monitoring, and exceptional power generation efficiency. With a wide MPPT voltage range of 140V–1000V and high input capacity, this inverter maximizes solar yield even under fluctuating conditions.
Built to perform reliably in Pakistan’s climate, this model ensures stability, cost-effectiveness, and long-term solar productivity.
Key Features of Fox 10kW On-Grid Inverter
-
Max PV Input Power: 15000W
-
MPPT Voltage Range: 140V – 1000V
-
Max. Input Current: 14A
-
Inverter Type: Transformerless, High-Efficiency
-
Smart Monitoring: LCD + Mobile App + Web Portal
-
User Interface: Touch Keypad + Remote Access
-
Communication: RS485 / WiFi / Cloud
-
Cooling: Intelligent Passive Cooling
-
Safety Protections: Overvoltage, Overcurrent, Anti-islanding
Technical Specifications Table
| Specification | Details |
|---|---|
| Model | Fox T-Series 10kW |
| System Type | 3-Phase On-Grid |
| Max PV Input Power | 15,000W |
| MPPT Voltage Range | 140 – 1000V |
| Max Input Current | 14A |
| Display Type | LCD Touch Key + App/Web |
| Topology | Transformerless |
| Communication | WiFi / RS485 / Web |
| Cooling Method | Smart Passive Cooling |
| Dimensions | Standard T-Series |
