GROWATT 20KW OnGrid Solar Inverter
  • GROWATT 20KW OnGrid Solar Inverter
GROWATT 20KW OnGrid Solar Inverter

GROWATT 20KW OnGrid Solar Inverter

Rs.315,000.00 PKR Rs.320,000.00 PKR

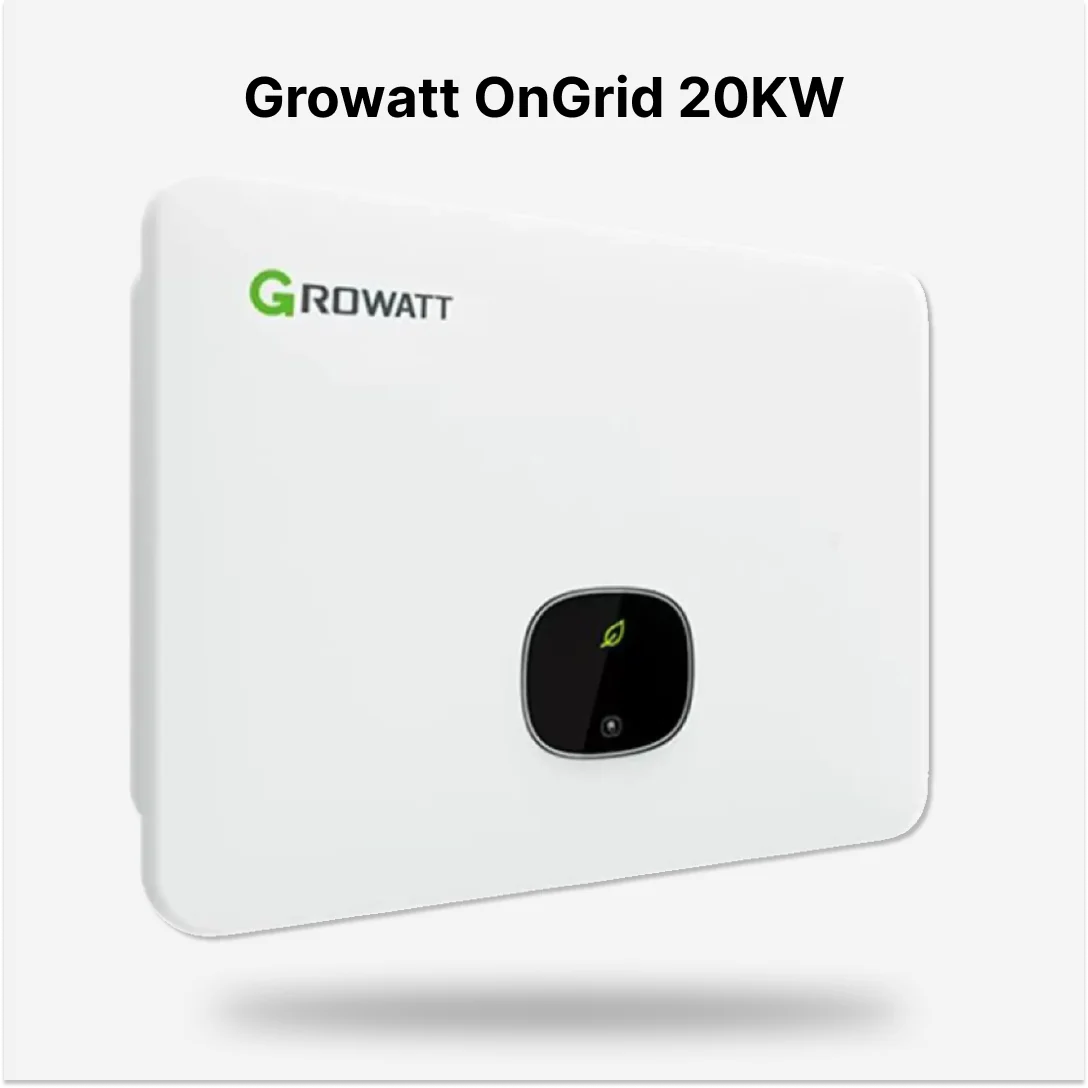

Growatt MID 20KTL3-XH

20kW | Three Phase | Battery Ready | IP66 Rated

The Growatt MID 20KTL3-XH is a high-performance three-phase hybrid inverter designed for large-scale residential or small commercial solar systems. With support for up to 40kW DC input and a DC/AC ratio of 2.0, this inverter delivers exceptional efficiency (up to 98.8%) and smart functionality, making it a flexible solution for hybrid energy storage.

This model features AFCI protection, Type II SPD on both AC and DC sides, and 24/7 consumption monitoring. It’s compatible with Growatt’s APX HV Battery System (5–60kWh) and supports up to 30kW battery charge/discharge, depending on configuration.

Key Features:

  • AC Nominal Power: 20,000W

  • Max. AC Output Power: 22,000VA

  • Max. Output Current: 33.3A

  • Max. Recommended PV Input: 40,000W

  • Max. DC Voltage: 1100V

  • MPPTs / Strings: 2 MPPTs, 2 strings

  • Battery Compatibility: APX HV Battery (600–980V)

  • Max. Charge/Discharge Power: 30kW (dual port)

  • Cooling: Smart air cooling

  • Efficiency: Max. 98.8%

  • Protection: AFCI (optional), Type II SPD, RCD, Anti-islanding

  • Interfaces: RS485, USB, WiFi, GPRS, LAN (optional)

  • Display: OLED + LED / App

  • Weight: 31 kg

  • Dimensions: 580 × 435 × 230 mm

  • Ingress Protection: IP66

  • Operating Temp: –25°C to +60°C
