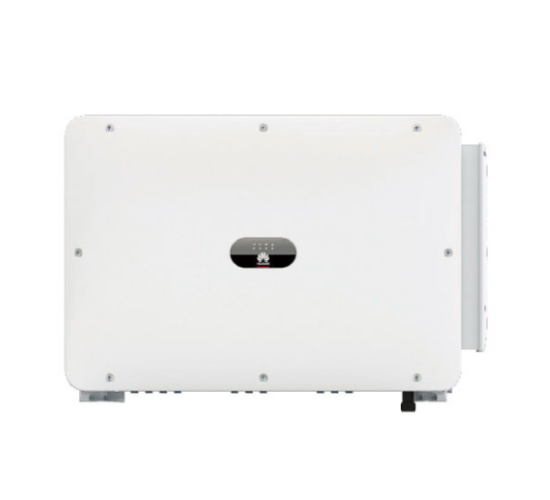

The Huawei 150kW OnGrid Inverter offers world-class efficiency, intelligent monitoring, and robust safety features — all in a compact and fan-less design. Ideal for petrol pumps, factories, malls, cold storages, and mega setups, this inverter is built to last and designed to maximize your ROI through unmatched energy yield.

Product Specifications

• Model: SUN2000-150KTL
• Rated Output Power: 150,000W (150kW)
• Efficiency: Up to 98.8%
• MPPT Inputs: 9 MPPTs with 18 strings
• Maximum DC Voltage: 1100V
• Start Voltage: 200V
• PV Input Current: 26A per string
• Cooling: Natural convection (No fan – silent operation)
• Communication: RS485, SmartLogger, WLAN, 4G optional
• Protection Ratings: IP66 | Anti-PID | Arc Fault Protection | SPD Type II (DC & AC)
• Dimensions: 1035 × 700 × 365 mm
• Weight: 74 kg
• Standard Compliance: IEC 62109-1/-2, IEC 61000, VDE-AR-N 4105
