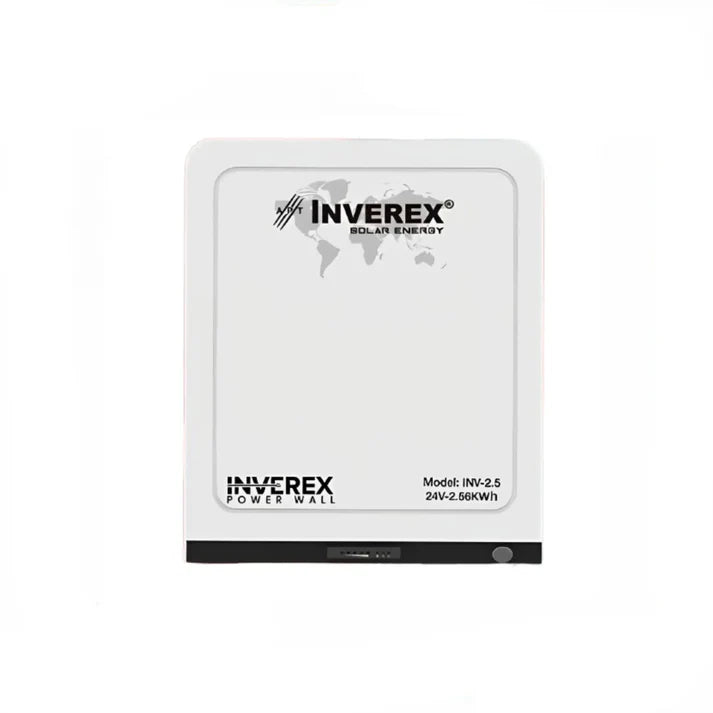

Inverex Power Wall 2.5kwh 24v 100ah Lithium ion Battery
Rs.198,000.00 PKR
Product Specifications
|
Type
|
lithium-ion battery
|
|
capacity
|
2.5 kwh
|
|
voltage
|
24 volts
|
|
recommended depth of discharge
|
90%
|
|
dimensions (w/h/d)
|
380mm x 450mm x 215mm (without hanging board)
|
|
weight (approximate)
|
28 kg
|
|
master led indicator
|
5 leds (state of charge
|
|
ip rating of enclosure
|
ip23
|
|
charge
|
0°c to +55°c
|
|
discharge
|
-20°c to +55°c
|
|
storage temperature
|
0°c to +35°c
|
|
humidity
|
5% to 95%
|
|
altitude
|
≤2000 m
|
|
cycle life
|
≥4000 cycles (25°c ± 2°c, 0.2c/0.2c, 90% depth of discharge, 70% end of life)
|
|
installation
|
wall-mounted
|
|
communication ports
|
can2.0, rs485
|
|
warranty period
|
5 years
|
|
energy throughput
|
4 mwh @ 70% end of life
|
|
certification
|
un38.3, msds
|
|
compatibility
|
inverex solar inverters
|
Key Features
- 2.5 kWh Capacity with 24V voltage for reliable energy storage
- Long Cycle Life of ≥4000 cycles for durability and long-term performance
- High Depth of Discharge at 90% for maximizing usable energy
- Wide Operating Temperature Range of -20°C to +55°C for discharge, and 0°C to +55°C for charging
- Wall-Mounted Installation design for flexible setup and space-saving
- LED Indicator for real-time state of charge monitoring (20%-100%)
- Energy Throughput of 4 MWh to ensure consistent power delivery
- Communication Ports (CAN2.0, RS485) for easy integration with Inverex Solar Inverters
- IP23 Enclosure Rating for reliable performance in varied environments
- 5-Year Warranty for assured product longevity
- Certified for Safety with UN38.3 and MSDS certifications
- Humidity Tolerance of 5% to 95%, suitable for a variety of environments
