Key Features:
✔ Industrial Power Output – 12kW continuous (24kW surge) with 200% overload capacity
✔ Military-Grade Durability – IP54 rated enclosure (-25°C to +60°C operation)
✔ Unmatched Scalability – Parallel up to 16 units for 192kW total capacity
✔ Ultra-Fast Charging – 200A MPPT charging current with dual PV inputs
✔ Smart Grid Interaction – Zero-export mode for compliance + generator synchronization
✔ Future-Proof Tech – Built-in WiFi/GPRS for remote monitoring & firmware updates
Technical Specifications:
PV Input: 18,000W max | 600V VOC | Dual MPPT trackers (11A+22A)
AC Output: 220/230/240VAC | <2.5% THD | 50Hz/60Hz
Battery: 48V system (42V–58.4V) | 250A max discharge current
Dimensions: 310×610×218mm | Weight: 28kg
Certifications & Warranty:
Safety: IEC62109, VDE-AR-N 4105, CE, UN38.3
Protection: Anti-islanding, DC/AC surge, over-temperature
Ideal For:
Commercial/industrial solar farms
Hospital/data center backup
Off-grid microgrid systems
EV charging station support

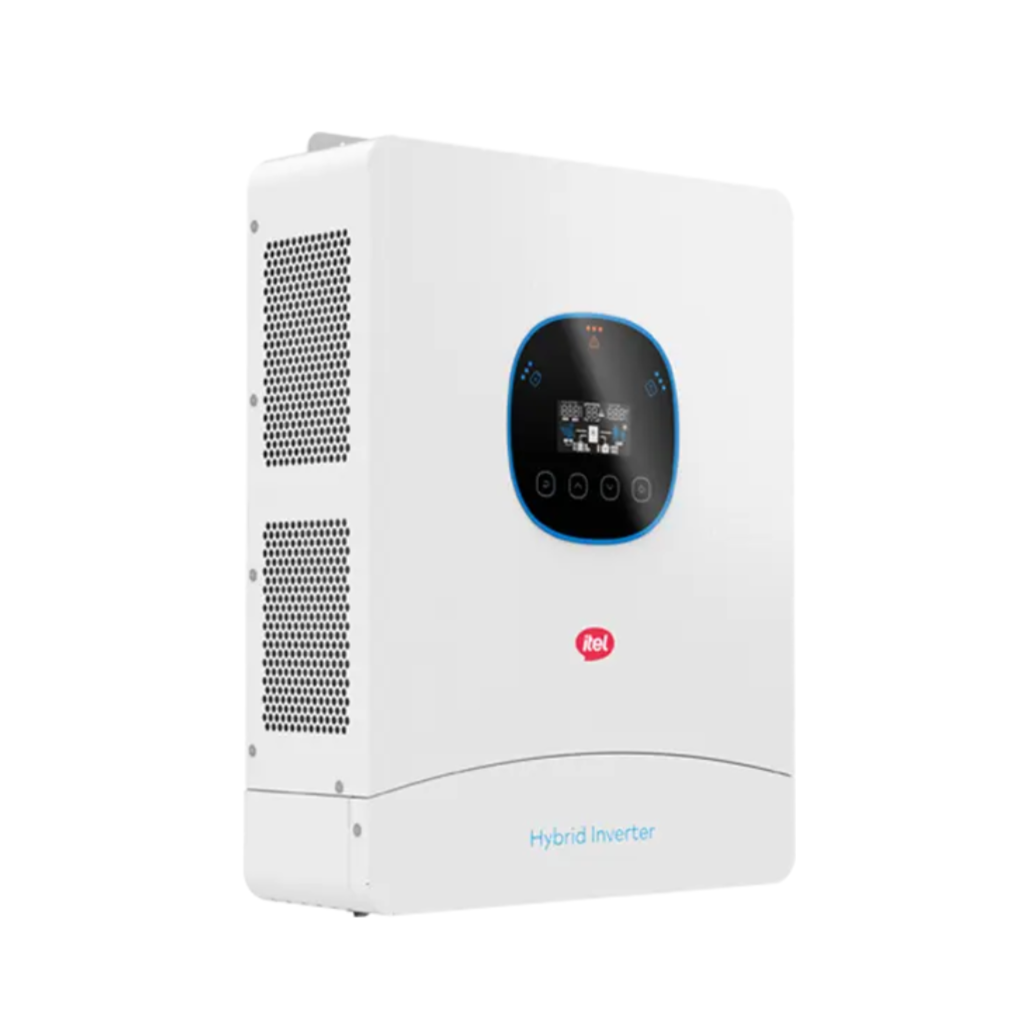

Itel 12kw Inverter Hybrid IP54
Rs.275,000.00 PKR
