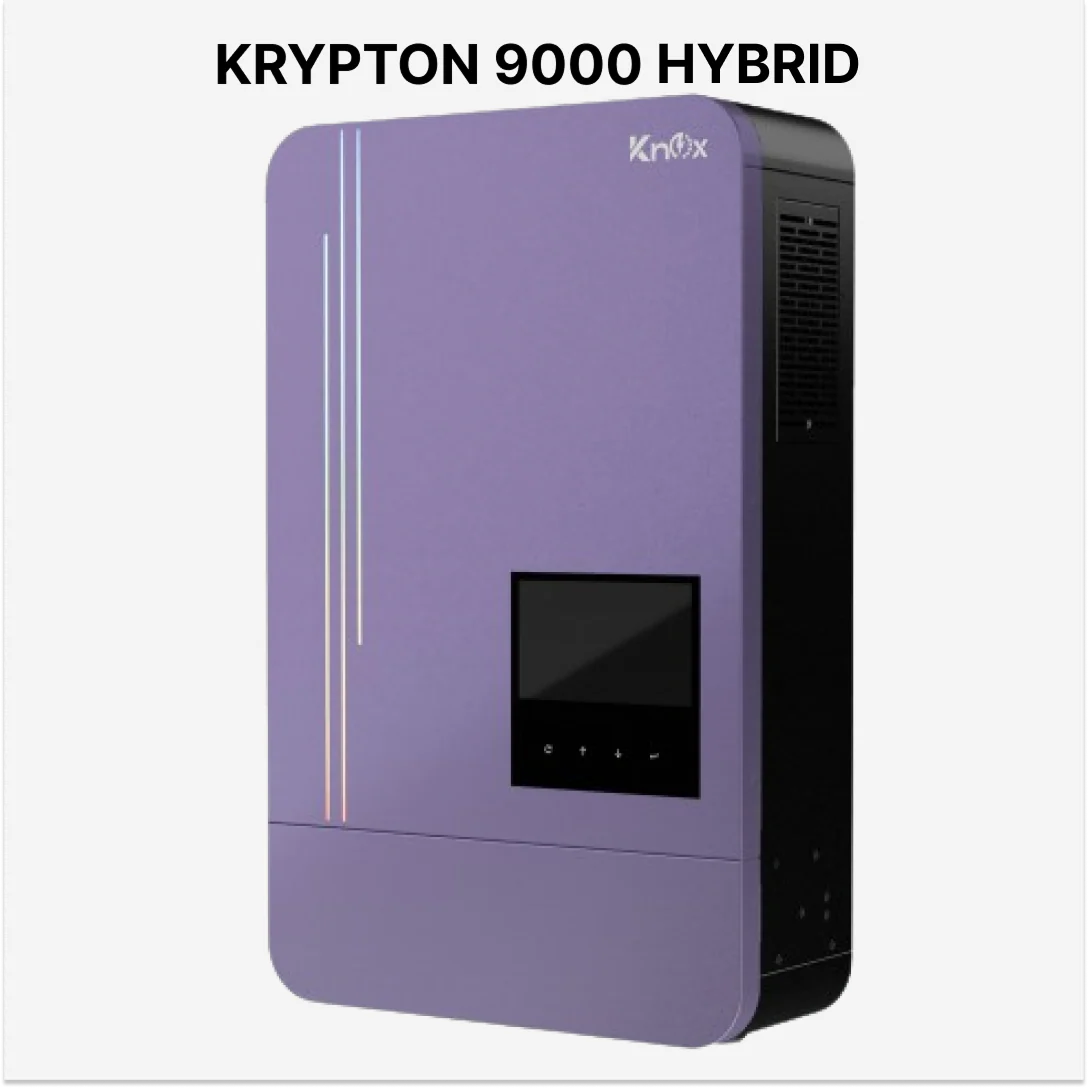

Knox Krypton 6.2KW PV9000 HYBRID Solar Inverter
Sale price
Rs.147,000.00 PKR
Regular price
Rs.173,000.00 PKR
⚙️ General Specifications
| Parameter | Specification |
|---|---|
| Phase | Single Phase |
| Rated Output Power | 6200 W |
| Battery + PV Output Power | 8000 W |
| Nominal DC Voltage | 48 VDC |
| Maximum DC Voltage | 500 VDC |
| Start-up Voltage | 120 VDC |
| Initial Feeding Voltage | 150 VDC |
| MPPT Voltage Range | 120 VDC – 430 VDC |
| Number of MPPT Trackers | 1 |
| Max Input Current | 27 A (Max 40 A) |
🔋 PV Input (DC)
| Parameter | Specification |
|---|---|
| Maximum PV Input Power | 9000 W |
| Solar Charger Type | MPPT |
| Maximum Solar Charging Current | 142 A |
⚡ Battery & Charger
| Parameter | Specification |
|---|---|
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Maximum AC Charging Current | 120 A |
| Maximum Charging Current | 120 A |
🏠 Battery Mode Output (AC)
| Parameter | Specification |
|---|---|
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 – 264.5 VAC or 195.5 – 253 VAC (Selectable) |
| Nominal Output Current | 28.26 A |
| Power Factor | > 0.99 |
| Output Waveform | Pure Sine Wave |
| Surge Power | 12400 VA |
| Transfer Time | 10 ms (PCs), 20 ms (Home Appliances) |
🔌 Grid-Tie Operation & AC Input
| Parameter | Specification |
|---|---|
| AC Start-up Voltage | 120 – 140 VAC |
| Auto Restart Voltage | 180 VAC |
| Acceptable Input Voltage Range | 90 – 280 VAC or 170 – 280 VAC |
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) |
| Nominal Output Voltage | 230 VAC |
📊 Efficiency
| Parameter | Specification |
|---|---|
| Maximum Conversion Efficiency (DC/AC) | 95% |
| Overall Efficiency (DC to AC) | 93% |
| DC Voltage | 12 VDC ± 5%, 100W |
📐 Physical & Environmental
| Parameter | Specification |
|---|---|
| Dimensions (D x W x H) | 138 x 320 x 550 mm |
| Net Weight | 12 kg |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 0 – 90% RH (Non-condensing) |
🔗 Interface & Communication
-
USB
-
RS232
-
RS485
-
WiFi
-
Dry-contact
🛡️ Certifications & Approvals
-
IEC 61682
-
Low Voltage Directive 2014/35/EU
-
IEC 62109-1
-
IEC 62109-2
-
IEC 61683
-
More certifications available upon request
✅ Key Highlights
-
High surge power of 12.4 kVA
-
Pure sine wave output for sensitive electronics
-
Fast transfer time (10–20 ms) for seamless backup
-
Robust MPPT solar charging with wide voltage range
-
Multiple communication options for easy monitoring
-
Compact and lightweight design
-
Certified for safety and reliability
