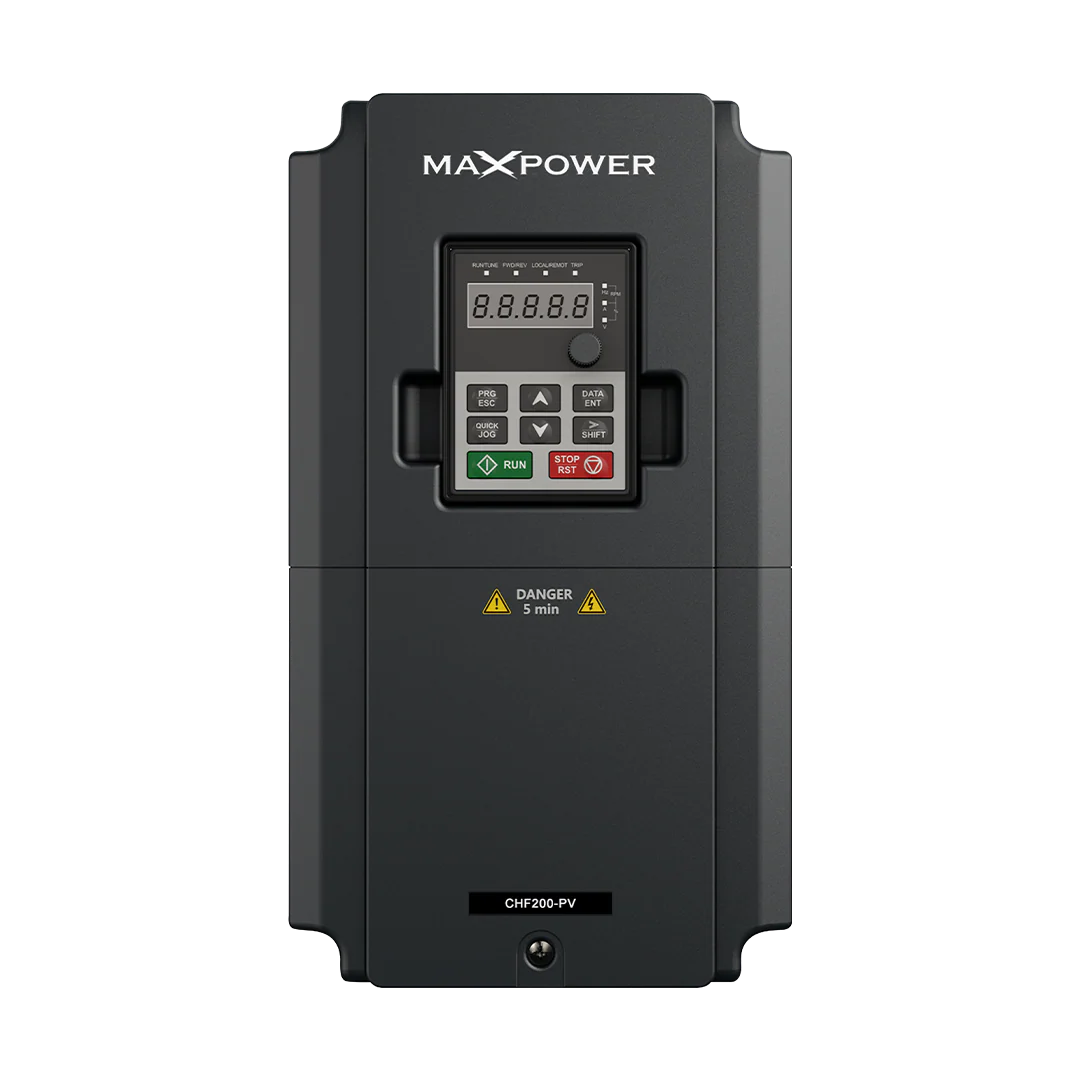

MaxPower CHF200-7R5-4-PV 7.5KW - Hybrid VFD Solar Pump Inverter
Rs.70,000.00 PKR
CHF200-7R5-4-PV Hybrid VFD with Advanced MPPT and IoT Features
The CHF200-7R5-4-PV is a cutting-edge hybrid variable frequency drive (VFD) that combines the benefits of AC and photovoltaic (PV) energy sources. Built for efficiency and reliability, this VFD incorporates advanced MPPT technology and intelligent IoT features, making it an excellent choice for diverse motor-driven applications, including multi-type pump systems.
Key Features
- Hybrid Operation (AC & PV Supply): Supports seamless switching between AC and solar PV energy, ensuring uninterrupted performance and optimized energy use.
- Advanced MPPT Algorithms: Tracks and maximizes solar power generation efficiency, enhancing energy savings and reducing operational costs.
- High Efficiency and Stability: Delivers consistent and reliable performance, even under challenging environmental conditions.
- Effective Protection Function: Features comprehensive safety mechanisms to protect the system and extend its lifespan.
- Intelligent IoT Integration: Enables remote monitoring and control, providing enhanced system management and predictive maintenance capabilities.
- Multi-Type Pump Compatibility: Drives various pump types, including permanent magnet synchronous motors (PMSM), asynchronous motors (AM), and single-phase motors, offering unmatched versatility.
Specification
| DC input | Technical Data |
| Max DC voltage (V) | 800 |
| Start voltage(V) | 300 |
| Min. work voltage(V) | 250 |
| Recommended MPPT voltage (V) | 300-750 |
| Recommended input work voltage (V) | 550 |
| AC input | |
| 3PH 380 (-15% ) ~440 (+10% ) -4 | |
| Input voltage (Vac) | 3PH 220 (-15% ) ~240 (+10% ) -2 |
| 1PH 220 (-15%) 240 (+10%) -S2 & -SS2 | |
| Input frequency(Hz) | 47-63 |
| AC output | |
| Output voltage (Vac) | 0-input voltage |
| Output frequency(Hz) | 0-400 |
| Control performance | |
| Control method | V/F (SVPWM) |
| Pump type | Asynchronous, synchronous and single phase motor. |
| Overload | 120% of rated current : 1 minute |
| Overload capability | 150% of rated current : 10 seconds |
| Others | |
| Protective degree | IP20 |
| Cooling method | Forced air cooling |
| Interface | LED keypad |
| Professional function | |
| Protection function | Low water level, overload, overcurrent, overvoltage, weak sunlight alarm, overheating, etc. |
| MPPT function | Automatic factory setting |
| Auto run/stop | Sleep when the light is weak and wake up when the light is strong |
| Water level monitor | Sleep when the water is full and wake up when the water level is low |
| Certification | |
| Certification standard | CE |
