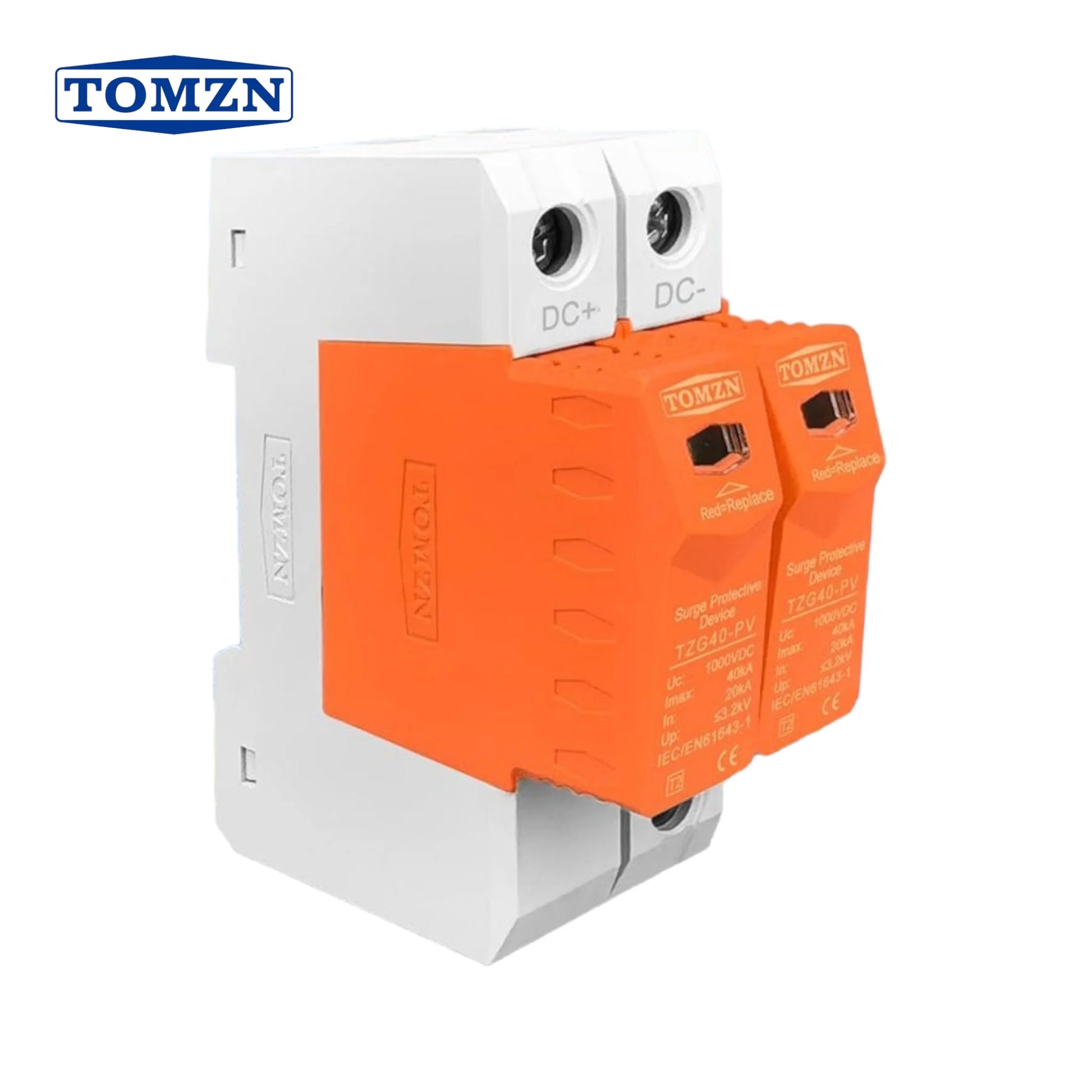

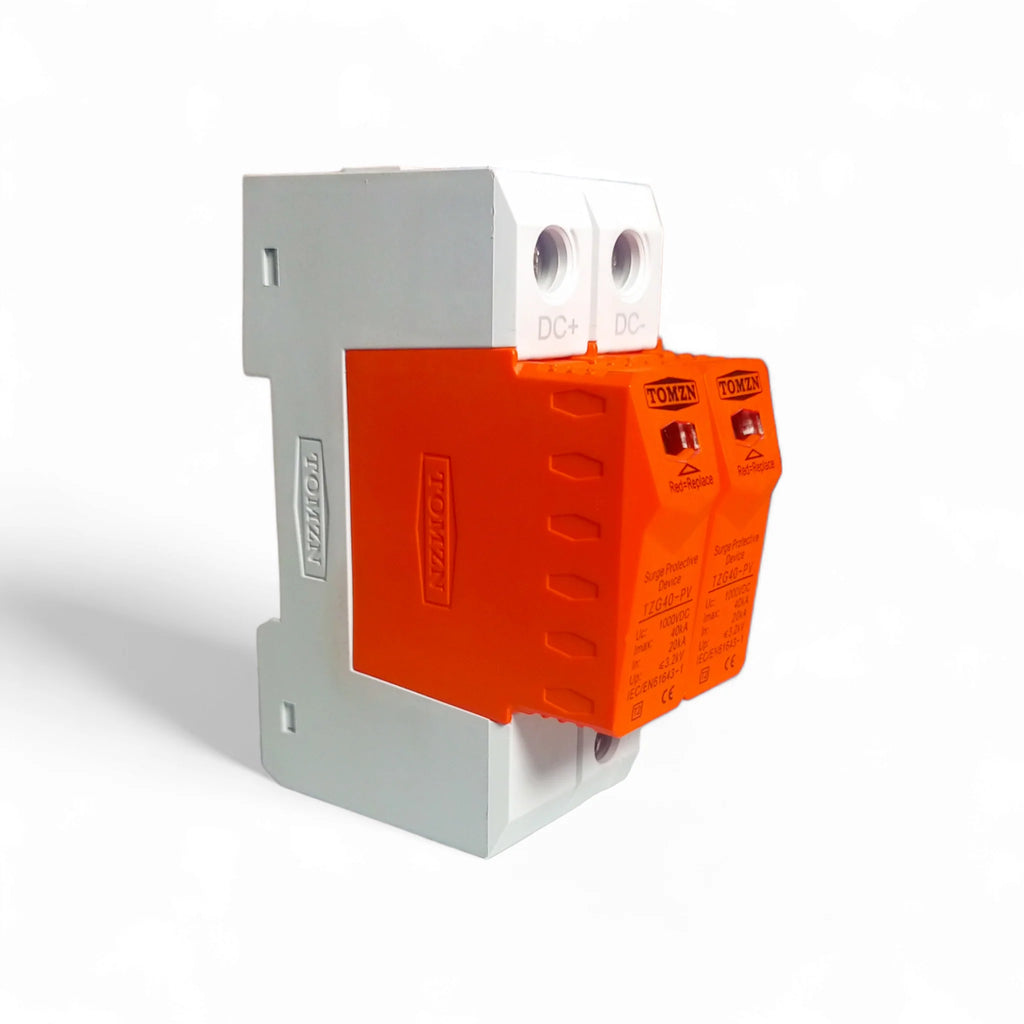

Tomzn SPD DC 500V / 1000V House Surge Protector
Rs.3,000.00 PKR
Tomzn SPD DC 500V / 1000V Surge Protector
The Tomzn SPD DC 500V / 1000V Surge Protector is a highly reliable device designed to safeguard DC electrical systems from voltage surges and transient spikes. Ideal for solar energy systems and other DC-powered setups, it ensures the safety and longevity of connected equipment by diverting excess voltage safely to the ground.
Key Features
- Surge Protection: Shields sensitive electrical components from harmful voltage surges and transient spikes.
- High Capacity: Handles nominal discharge currents of 20KA and maximum surge currents up to 40KA, offering robust protection.
- Voltage Compatibility: Operates efficiently with 500V DC and 1000V DC systems, making it versatile for various applications.
- 2P Design: Protects both positive and negative conductors in DC circuits, ensuring comprehensive system safety.
- Application Versatility: Ideal for use in solar power installations, DC power supplies, and other critical DC systems requiring reliable surge protection.

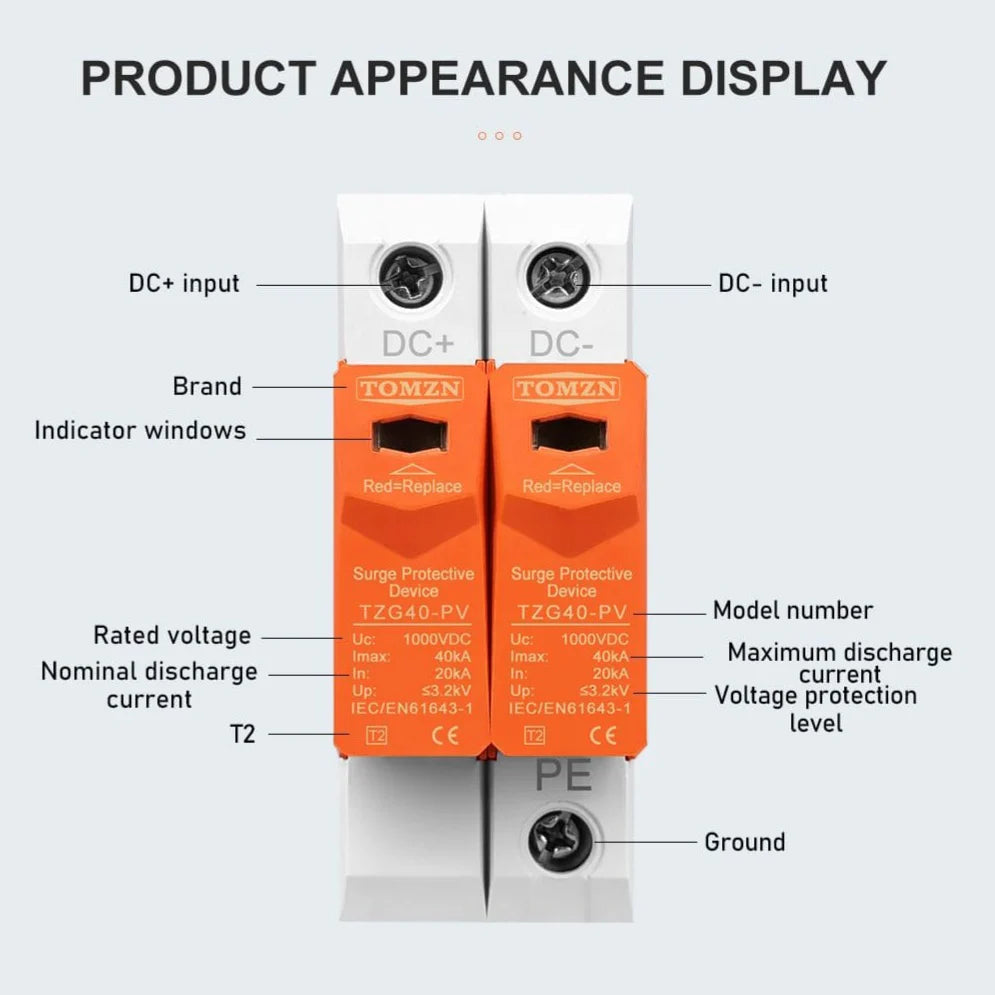

Specifications
- Brand: Tomzn
- Model: SPD DC 500V / 1000V
- Type: Surge Protection Device (SPD)
- Rated Voltage: DC 500V / 1000V
- Poles: 2 Poles (Single-phase or 2-pole DC systems)
- Nominal Discharge Current: 20KA
- Maximum Discharge Current: 40KA
Summary
The Tomzn SPD DC 500V / 1000V is an essential component for ensuring the reliability and safety of DC electrical systems. With high surge capacity and dual-pole protection, it is particularly suited for solar installations and other setups where voltage stability is critical.
