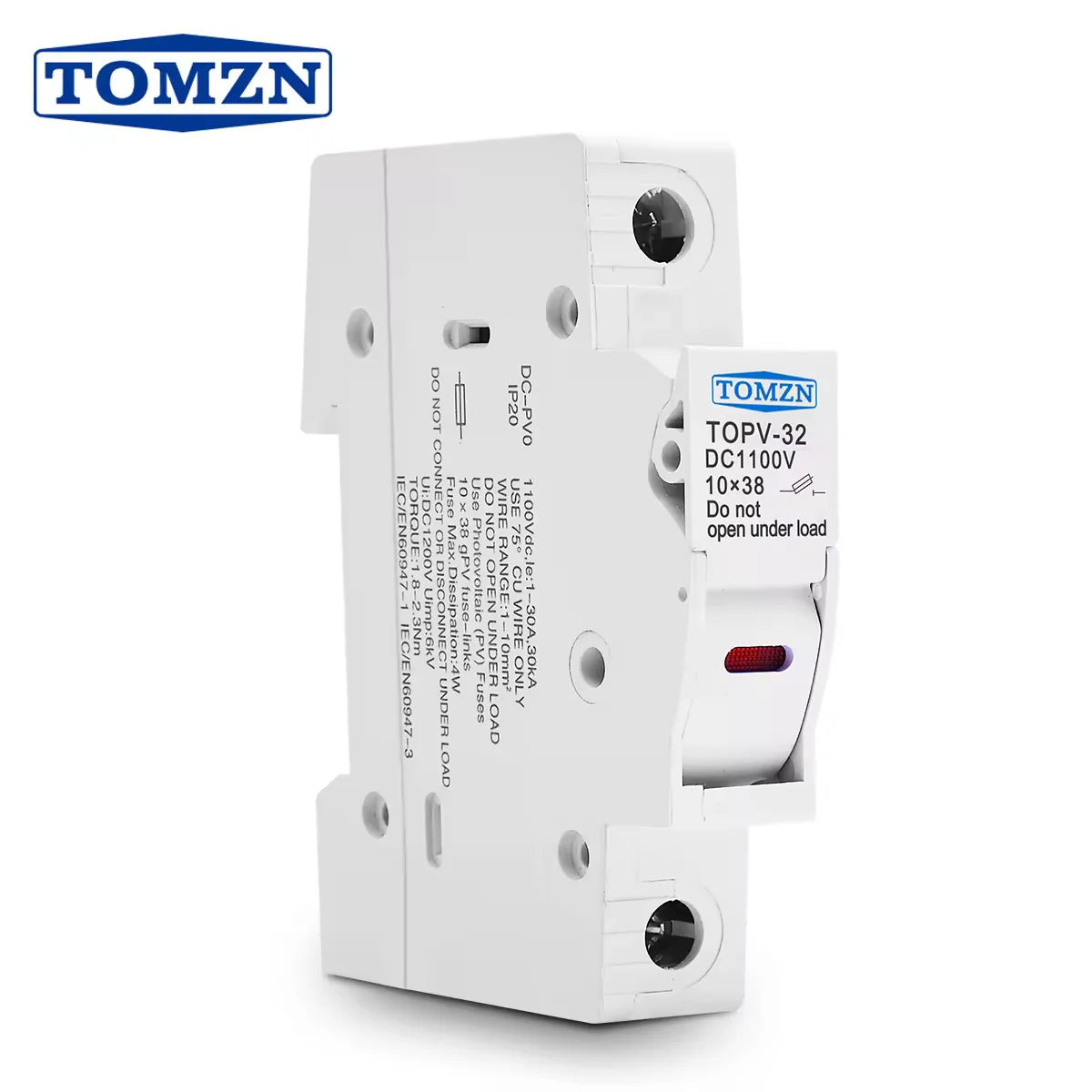

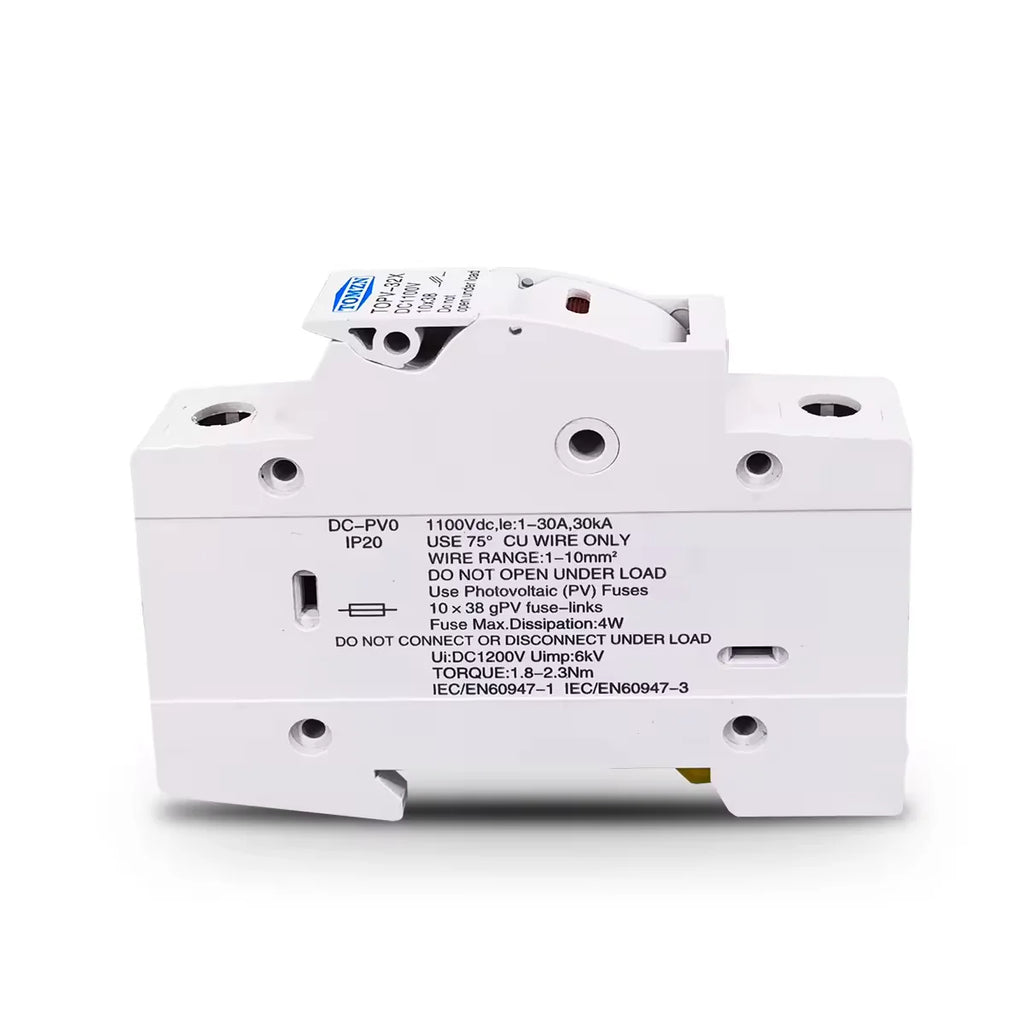

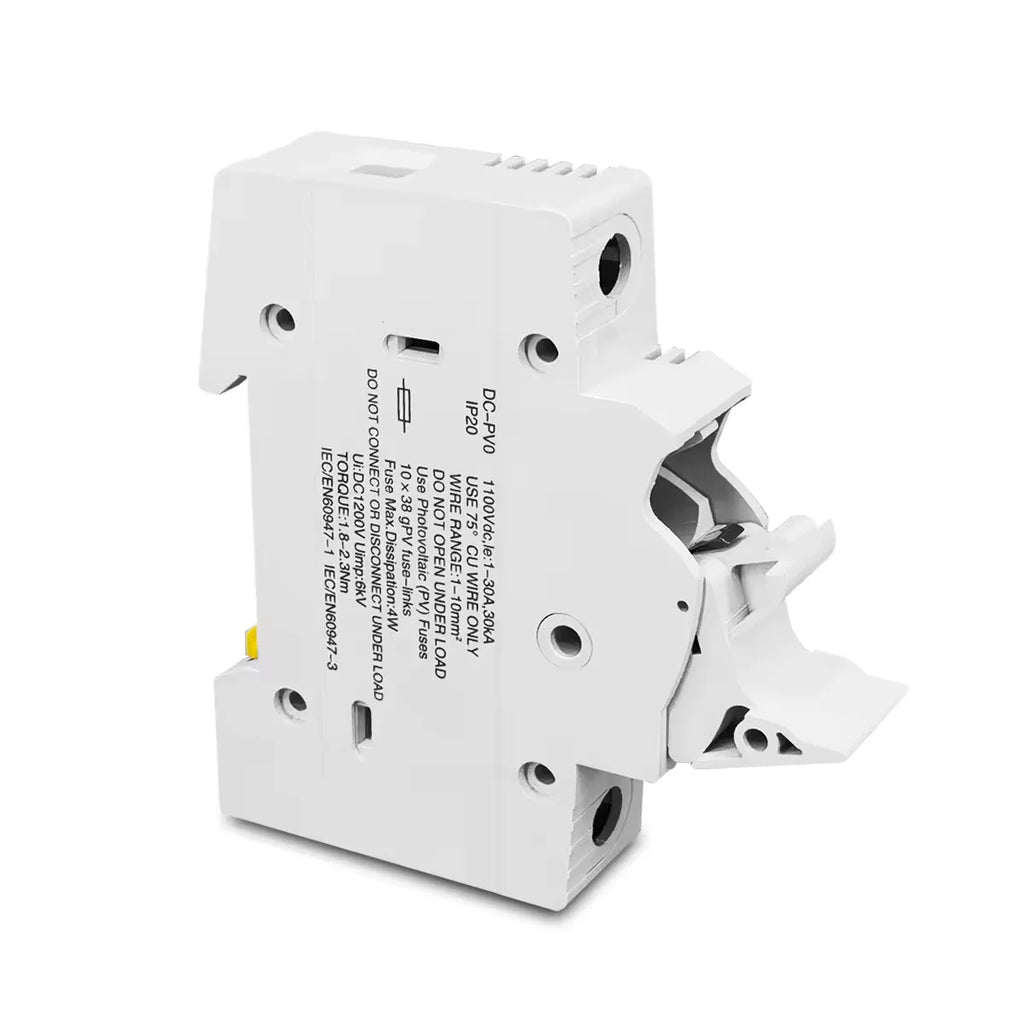

Tomzn TOPV-32 Fuse Holder for 10 x 38 gPV Fuses – Compatible with DC 1000V Systems
Rs.400.00 PKR
Tomzn TOPV-32 Fuse Holder for 10 x 38 gPV Fuses – Compatible with DC 1000V Systems
Key Features:
- Brand: Tomzn
- Model Number: TOPV-30 1P
- Maximum Voltage: 1000V DC
- Current Range: 1-30A (adjustable based on application)
- Short Circuit and Overload Protection: Ensures the safety of electrical systems by preventing damage due to overload or short circuits.
- Fuse Type: 10 x 38 gPV fuse-links (for photovoltaic systems)
- Max Dissipation: 4W
- Wire Range: 1-10mm² (use 75° CU wire only)
- Torque: 1.8-2.3Nm (for installation)
- Usage: Photovoltaic (PV) fuses for solar energy systems.
-
Safety Features:
- Do not connect or disconnect under load.
- Use in systems with a DC voltage of up to 1200V.
- Impulse voltage withstand (Uimp) rating: 6kV.
-
Complies with:
- IEC/EN60947-1
- IEC/EN60947-3
Applications:
- Photovoltaic (PV) Systems: Ideal for use in solar energy systems, ensuring safe operation and protecting circuits from overloads or short circuits.
- DC Electrical Systems: Provides reliable protection in various DC circuits, preventing damage from electrical faults.
Installation Notes:
- Important Safety Notice: Do not open the fuse under load to avoid electrical hazards.
- Wiring: Only use copper wire with a 75°C insulation rating for proper functioning and safety.
The Tomzn TOPV-32 DC 1000V Voltage Fuse is a reliable and high-quality solution for protecting DC circuits, especially in photovoltaic (solar power) systems. It ensures system safety and is designed for easy installation and replacement in critical applications.
