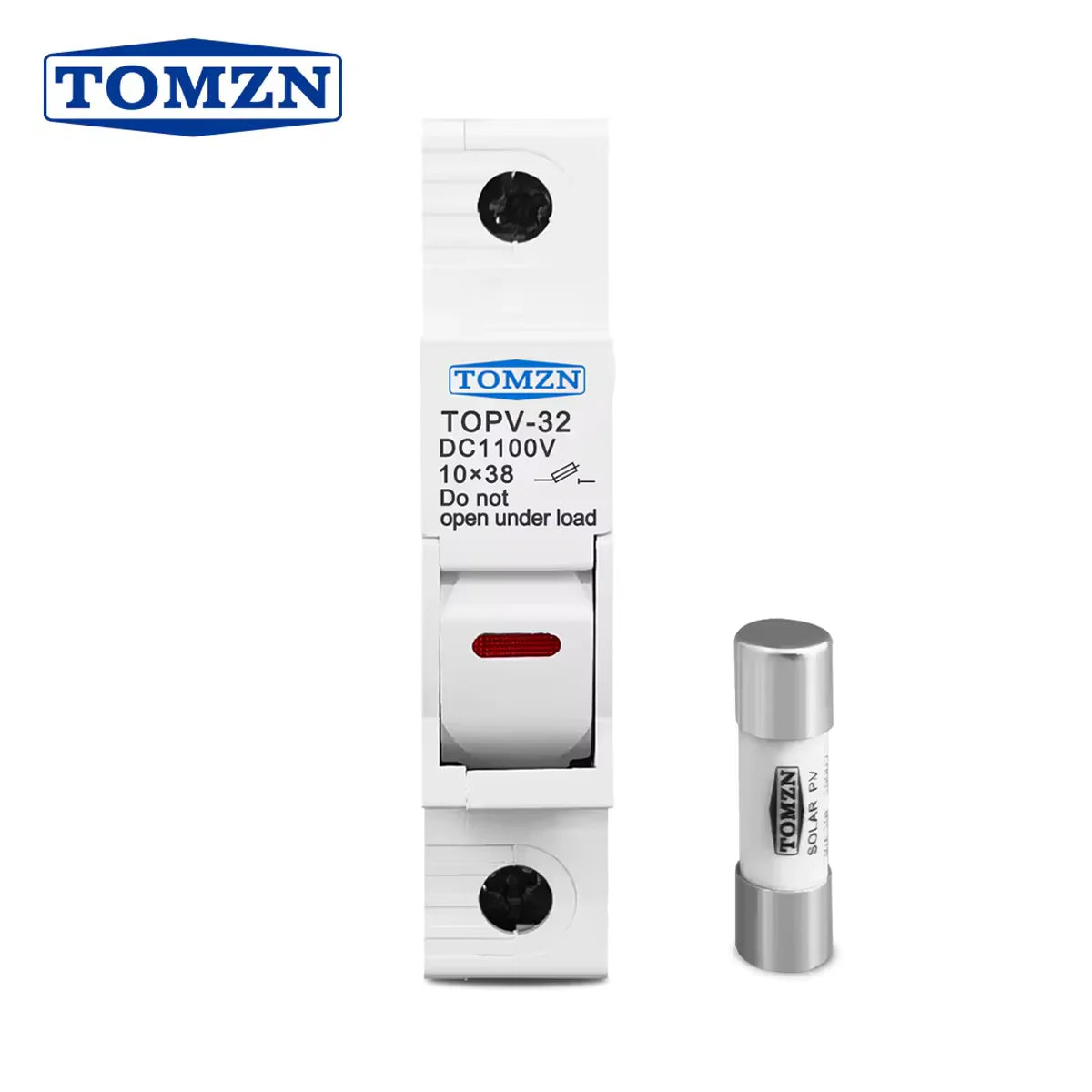

Tomzn TOPV-32 Fuse Holder & Fuse Set – DC 1000V Overload & Short Circuit Protection

Tomzn TOPV-32 Fuse Holder & Fuse Set – DC 1000V Overload & Short Circuit Protection

Key Features:

• Brand: Tomzn
• Model Number: TOPV-30 1P
• Maximum Voltage: 1000V DC
• Current Range: 1-30A (adjustable based on application)
• Short Circuit and Overload Protection: Ensures the safety of electrical systems by preventing damage due to overload or short circuits.
• Fuse Type: 10 x 38 gPV fuse-links (for photovoltaic systems)
• Max Dissipation: 4W
• Wire Range: 1-10mm² (use 75° CU wire only)
• Torque: 1.8-2.3Nm (for installation)
• Usage: Photovoltaic (PV) fuses for solar energy systems.
• Safety Features:
  • Do not connect or disconnect under load.
  • Use in systems with a DC voltage of up to 1200V.
  • Impulse voltage withstand (Uimp) rating: 6kV.
• Complies with:
  • IEC/EN60947-1
  • IEC/EN60947-3

Applications:

• Photovoltaic (PV) Systems: Ideal for use in solar energy systems, ensuring safe operation and protecting circuits from overloads or short circuits.
• DC Electrical Systems: Provides reliable protection in various DC circuits, preventing damage from electrical faults.

Installation Notes:

• Important Safety Notice: Do not open the fuse under load to avoid electrical hazards.
• Wiring: Only use copper wire with a 75°C insulation rating for proper functioning and safety.

The Tomzn TOPV-32 DC 1000V Voltage Fuse is a reliable and high-quality solution for protecting DC circuits, especially in photovoltaic (solar power) systems. It ensures system safety and is designed for easy installation and replacement in critical applications.
